Description

Specification:

System model	TS25WLS3-340	TS30-370	TS30LS4-445	TS35WLS3-340	TS40-370	TS40LS4-445	TS50-445	TS50LS3-445
Sine(peak)/Random(rms)(kN)	25	30	30	35	40	40	50	50
Shock force(kN)	50/75	60/90	60/90	70/105	80/120	80/120	100/150	100/150
Frequency range(Hz)	5-2,800	5-2,800	5-2,600	5-2,800	5-2,800	5-2,600	5-2,600	5-2,600
Max.acceleration(m/s²)	1,000	1,000	750	1,000	1,300	900	1,000	900
Max.velocity(m/s)	2	2	1.8	2	2	1.8	2	2
Max.displacement(mm)	76	51	100	76	51	100	51	76
Max.load(kg)	300	500	500	300	500	500	800	800
Mass of moving elements(kg)	25	30	40	25	31	45	50	55
Armature diameter(mm)	340	370	445	340	370	445	445	445
Body suspension natural frequency(Hz)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Power amplifier model	PWA30W	PWA30	PWA30	PWA40W	PWA40	PWA40	PWA50	PWA50
Power(kVA)	36	30	30	48	40	40	50	50
Power requirement(kVA)	62	54	54	73	73	73	82	82
Cooling type	Water cooled	Air cooled	Air cooled	Water cooled	Air cooled	Air cooled	Air cooled	Air cooled

System model	TS50LS4-445	TS50W-445	TS50WLS3-445	TS50WLS4-445	TS60-445	TS60LS3-445	TS60LS4-445	TS60W-445
Sine(peak)/Random(rms)(kN)	50	50	50	50	60	60	60	60
Shock force(kN)	100/150	100/150	100/150	100/150	120/180	120/180	120/180	120/180
Frequency range(Hz)	5-2,500	5-2,600	5-2,500	5-2,400	5-2,600	5-2,600	5-2,500	5-2,600
Max.acceleration(m/s²)	850	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Max.velocity(m/s)	2	2	2	2	2	2	2	2
Max.displacement(mm)	100	51	76	100	51	76	100	51
Max.load(kg)	800	800	800	800	800	800	800	800
Mass of moving elements(kg)	59	50	50	50	60	55	60	60
Armature diameter(mm)	445	445	445	445	445	445	445	445
Body suspension natural frequency(Hz)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Power amplifier model	PWA50	PWA50W	PWA50W	PWA50W	PWA60	PWA60	PWA60	PWA60W
Power(kVA)	50	50	50	50	60	60	60	60
Power requirement(kVA)	82	90	90	90	95	95	95	100
Cooling type	Air cooled	Water cooled	Water cooled	Water cooled	Air cooled	Air cooled	Air cooled	Water cooled

System model	TS60WLS3-445	TS60WLS4-445	TS70LS3-480	TS70W-445	TS70WLS3-445	TS70WLS4-445
Sine(peak)/Random(rms)(kN)	60	60	70	70	70	70
Shock force(kN)	120/180	120/180	140/210	140/210	140/210	140/210
Frequency range(Hz)	5-2,500	5-2,400	5-2,700	5-2,600	5-2,500	5-2,400
Max.acceleration(m/s²)	1,000	1,000	1,000	1,000	1,000	1,000
Max.velocity(m/s)	2	2	2/2.5*	2	2	2
Max.displacement(mm)	76	100	76	51	76	100
Max.load(kg)	800	800	1,000	800	800	800
Mass of moving elements(kg)	60	60	70	60	60	60
Armature diameter(mm)	445	445	480	445	445	445
Body suspension natural frequency(Hz)	2.5	2.5	2.5	2.5	2.5	2.5
Power amplifier model	PWA60W	PWA60W	PWA70	PWA70W	PWA70W	PWA80W
Power(kVA)	60	60	70	70	70	80
Power requirement(kVA)	100	100	108	110	110	140
Cooling type	Water cooled	Water cooled	Air cooled	Water cooled	Water cooled	Water cooled

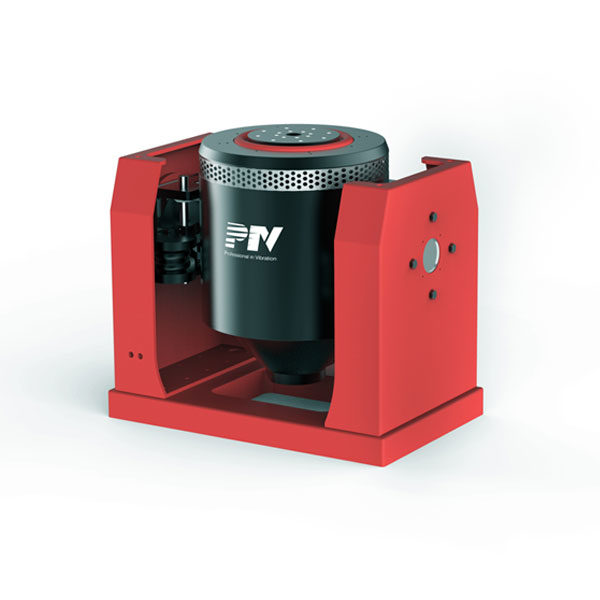

Medium Force Series
